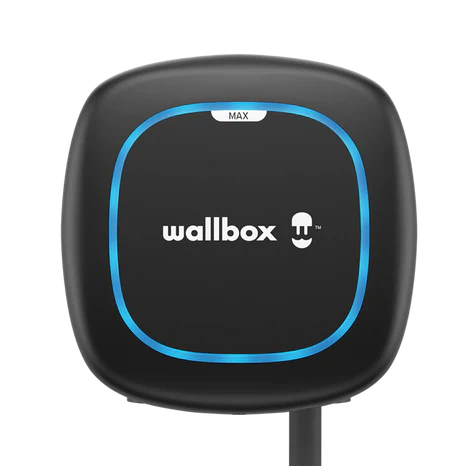

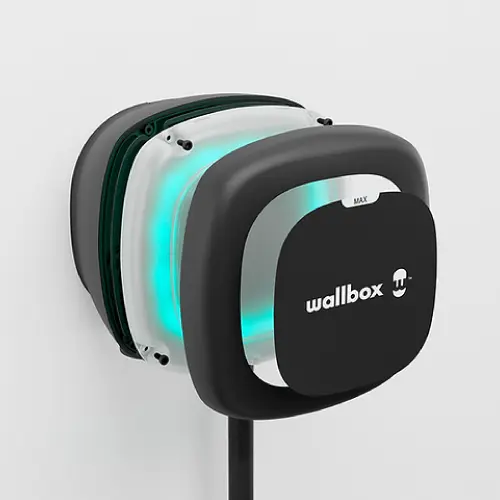

Wallbox Pulsar Max EV Electric Vehicle Charger - Type 2 - 5m - Black

Charge your electric vehicle conveniently at home with the Wallbox Pulsar Max EV Charger. This compact black wall-mounted charger includes a 5m Type 2 charging cable and supports charging outputs up to 7.4kW on single-phase power or 22kW on a compatible three-phase supply, depending on the model configuration and electrical installation.

Built-in Wi-Fi and Bluetooth connectivity let you manage the charger through the myWallbox app. Schedule charging for off-peak periods, monitor energy consumption, adjust charging power and remotely lock or unlock the charger from your compatible device.

With IP55 weather and dust protection, IK10 impact resistance and a scratch-resistant matte finish, the Pulsar Max is suitable for indoor or outdoor installation. It also supports optional Wallbox energy-management solutions for dynamic load management and solar charging when used with the required compatible accessories.

Key Features

• Wi-Fi and Bluetooth connectivity - Wallbox app and online portal control

• Programmable charging schedules

• Energy-use and charging session monitoring

• Remote and local lock or unlock controls

• Manual charging-power adjustment through the app

• RBG LED halo status indicator

• Compatible with optional solar charging and supports optional dynamic load management

• Suitable for indoor and outdoor installation

• Compact matte-black enclosure

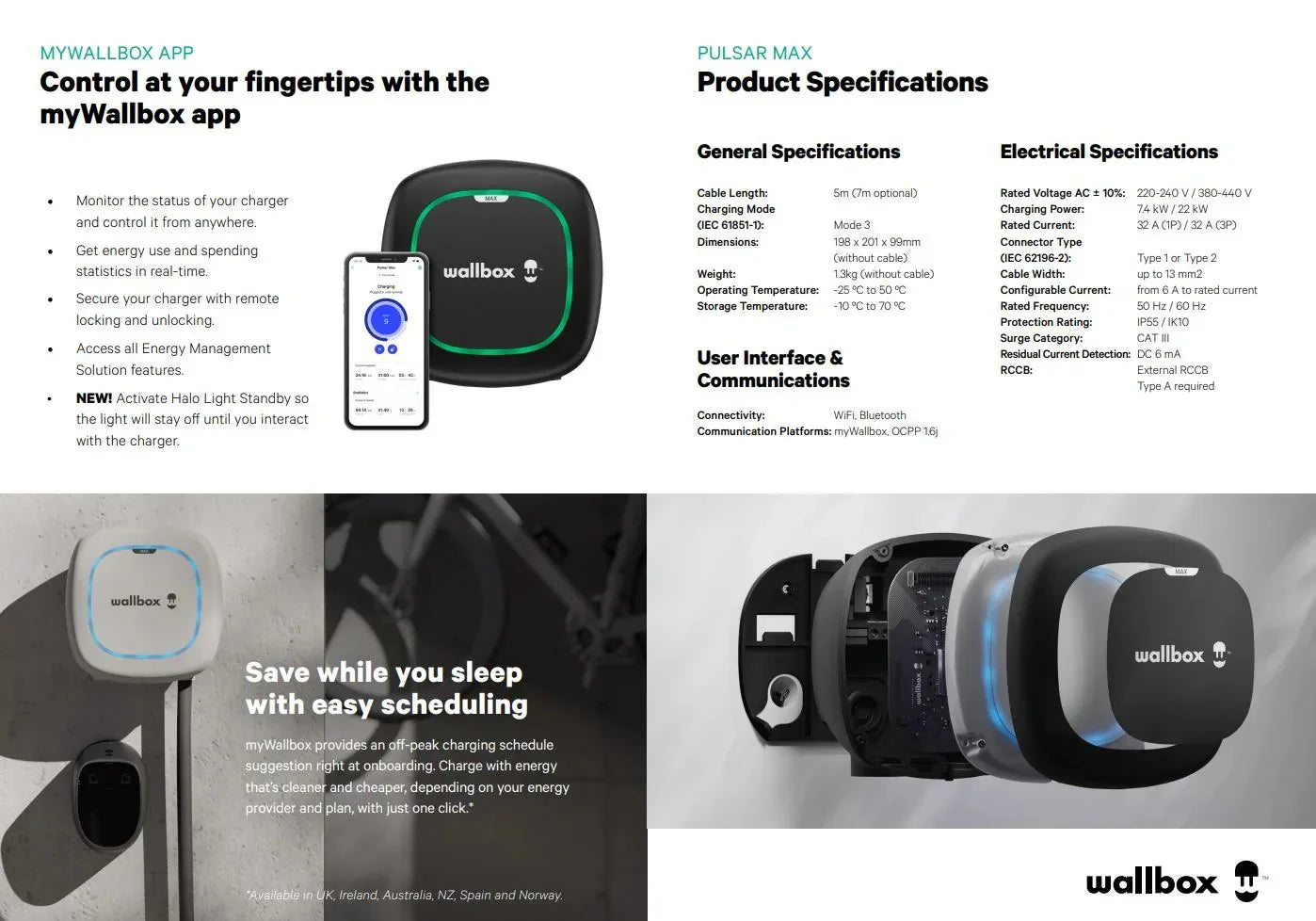

Specifications

• Brand, Range & Model: Wallbox - Pulsar Max (EVC-PULSARMAX-T2-BK)

• Connector Type: Type 2

• Cable Length: 5m

• Charging Mode (IEC 61851-1): Mode 3

• Maximum Charging Power: 7.4kW

• Electrical Phase: Single-Phase

• Rated Voltage: 220-240 AC

• Rated Current: 6-32A

• Rated Frequency: 50Hz/60Hz

• Connectivity: Wi-Fi and Bluetooth through Wallbox App and Portal

• Protection Rating: IP55 weather and dust protection

• Impact Rating: IK10

• DC Residual-Current Detection: 6mA

• Surge Category: CAT III

• Operating Temperature:

• Colour: Black

• Dimensions: 198mm (W) × 201mm (H) × 99mm (D)

What's Included:

• Wallbox Pulsar Max EV Charger - Black

• Type 2 Connector with 5m

• Connector Holder for added convenience
