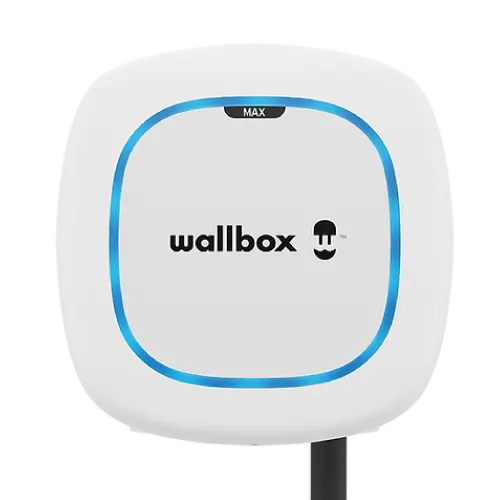

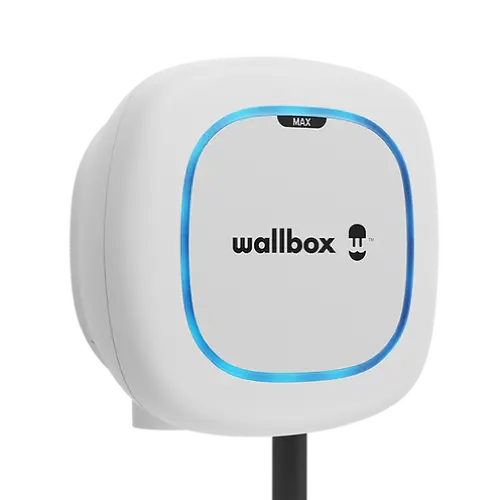

Wallbox Pulsar Max EV Electric Vehicle Charger - Type 2 - 5m - White

Charge your electric vehicle conveniently at home with the white Wallbox Pulsar Max EV Charger. This compact, wall-mounted charger delivers up to 7.4kW of single-phase charging power and includes a fixed 5m Type 2 cable for compatible electric vehicles and plug-in hybrids.

Built-in Wi-Fi and Bluetooth connectivity let you manage charging through the Wallbox app and online portal. Schedule charging for off-peak periods, monitor energy consumption, adjust the charging current and remotely lock or unlock the charger.

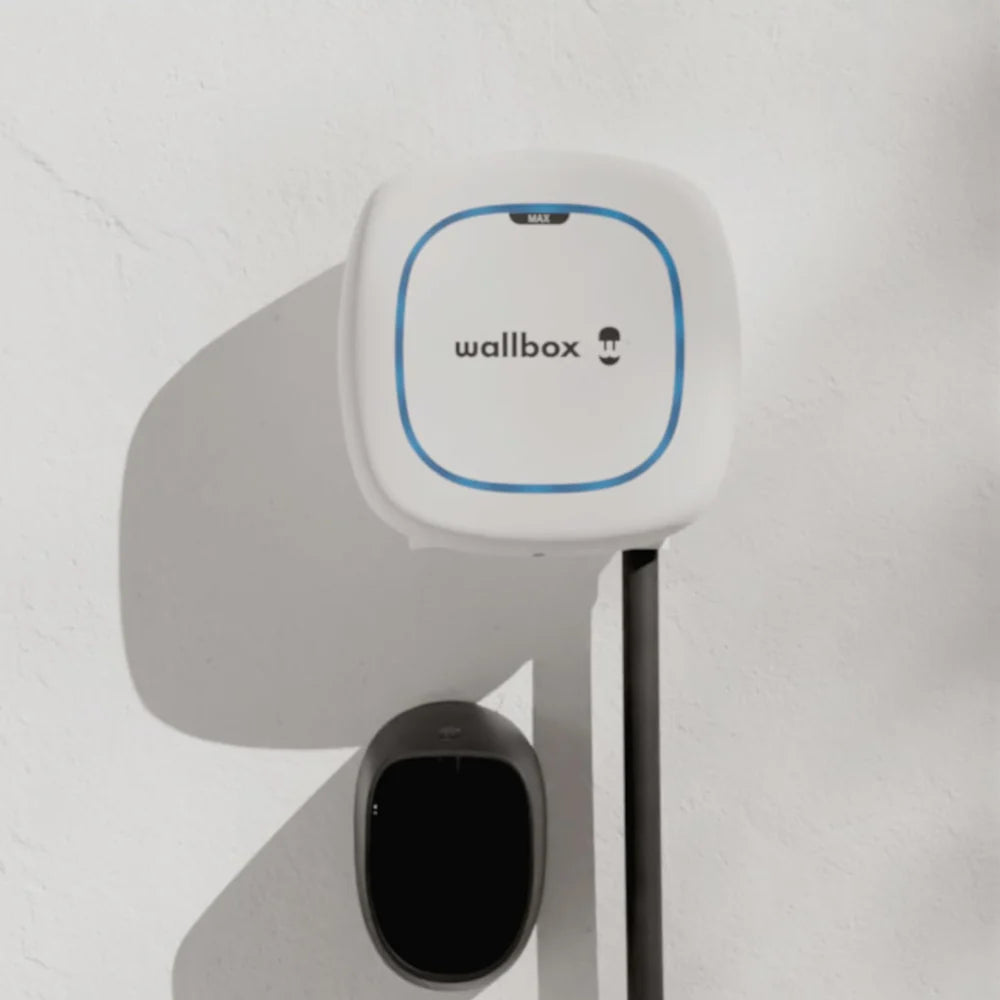

Its IP55 weather and dust protection rating, IK10 impact resistance and durable white finish make the Pulsar Max suitable for indoor or outdoor installation. Optional Wallbox accessories can enable solar charging and dynamic load management.

Key Features

• Wi-Fi and Bluetooth connectivity - Wallbox app and online portal control

• Programmable charging schedules

• Energy-use and charging session monitoring

• Remote and local lock or unlock controls

• Manual charging-power adjustment through the app

• RBG LED halo status indicator

• Compatible with optional solar charging and supports optional dynamic load management

• Suitable for indoor and outdoor installation

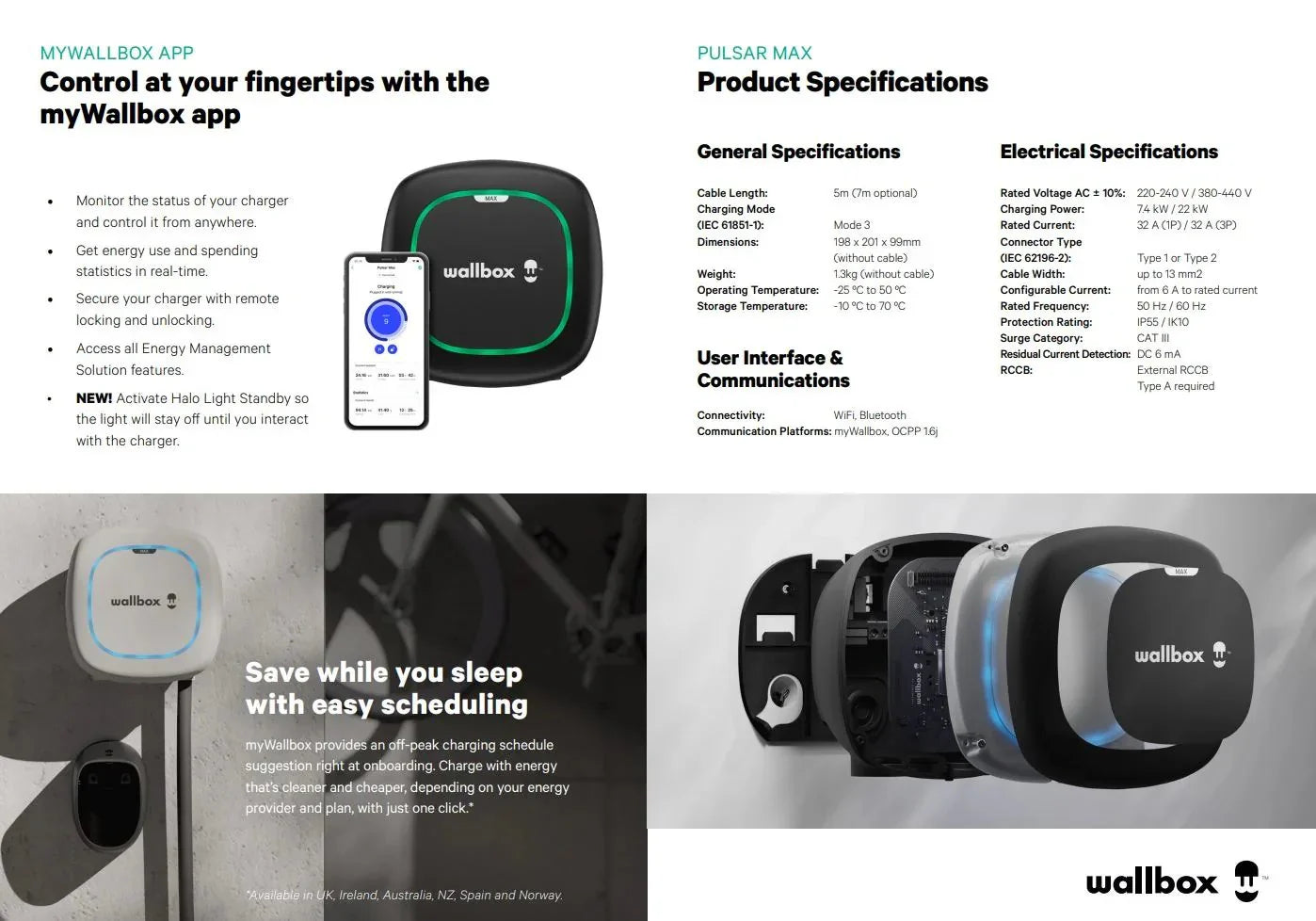

Specifications

• Brand, Range & Model: Wallbox - Pulsar Max (EVC-PULSARMAX-T2-WH)

• Connector Type: Type 2

• Cable Length: 5m

• Charging Mode (IEC 61851-1): Mode 3

• Maximum Charging Power: 7.4kW

• Electrical Phase: Single-Phase

• Rated Voltage: 220-240 AC

• Rated Current: 6-32A

• Rated Frequency: 50Hz/60Hz

• Connectivity: Wi-Fi and Bluetooth through Wallbox App and Portal

• Protection Rating: IP55 weather and dust protection

• Impact Rating: IK10

• DC Residual-Current Detection: 6mA

• Surge Category: CAT III

• Operating Temperature:

• Colour: Black

• Dimensions: 198mm (W) × 201mm (H) × 99mm (D)

What's Included:

• Wallbox Pulsar Max EV Charger - White

• Type 2 Connector with 5m

• Connector Holder for added convenience
